detail page

Displays detailed information about Encyclopedia volume objects. There are three detail pages:

<context root>\iportal\activePortal\errors

<context root>\iportal\activePortal\filesfolders

<context root>\iportal\activePortal\requests

error detail page

Provides a template error page that can be embedded in another page. For example, the view navigation page and the view TOC page use the error detail page to build error pages.

Name

<context root>\iportal\activePortal\errors\detail.jsp

Used by

iportal\activePortal\private\common\errors\error.jsp

iportal\activePortal\viewer\print.jsp

iportal\activePortal\viewer\saveas.jsp

iportal\activePortal\viewer\searchframe.jsp

iportal\activePortal\viewer\viewdefault.jsp

iportal\activePortal\viewer\viewtoc.jsp

file or folder detail page

Displays detailed information about the selected viewable folder or file. Users request file or folder details by choosing the magnifying glass icon to the right of files or folders listed on the Encyclopedia folder page or breadcrumb. Users can request another document or delete the current file or folder from the file or folder detail page. filedetail.jsp uses the HTML code in <context root>\iportal\activePortal\private\filesfolders\filedetailcontent.jsp to display the information.

Name

<context root>\getfiledetails.d

<context root>\iportal\activePortal\private\filesfolders\filedetail.jsp

Parameters

Table 5-10 lists and describes the parameters for the file or folder detail page. The file or folder detail page also uses the common URI parameters.

Table 5-10  Parameters for file or folder detail URI

URI parameter	Description
name	The full path name of the Encyclopedia object for which to show details, if objectID is not specified.
objectID	The Encyclopedia object’s unique identifier.
version	The Encyclopedia object’s version number. The default is the latest version.

Used by

Not applicable

request detail page

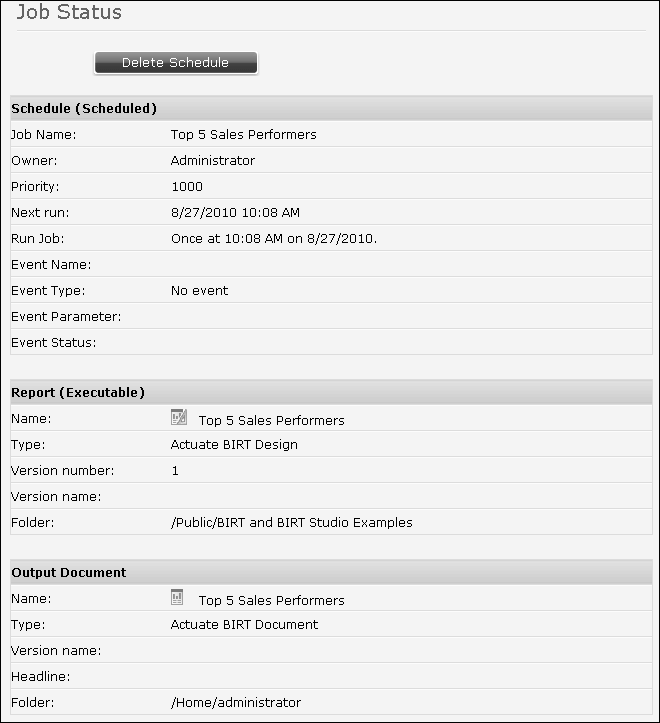

Lists detailed request information for a specified job, as shown in Figure 5-4.

Figure 5-4  Request detail page

getjobdetails.jsp uses the HTML code in <context root>\iportal\activePortal
\private\jobs\getjobdetailscontent.jsp to display the information.

Name

<context root>\getjobdetails.do

<context root>\iportal\activePortal\private\jobs\getjobdetails.jsp

Parameters

The request detail page uses the common URI parameters, as shown in Table 5-11.

Table 5-11  Parameters for request detail URI

URI parameter	Description
jobID	The job’s unique identifier.
userName	The user that submitted the job.
channelName	The channel to receive the request.

Used by

iportal\activePortal\private\jobs\completedjob.jsp

iportal\activePortal\private\jobs\pendingjob.jsp

iportal\activePortal\private\jobs\runningjob.jsp

iportal\activePortal\private\jobs\scheduledjob.jsp
