view TOC page

Displays the report document’s table of contents (TOC). Users view a report document’s table of contents by choosing TOC on the toolbar as shown in Figure 5-20.

Figure 5-20  TOC toolbar

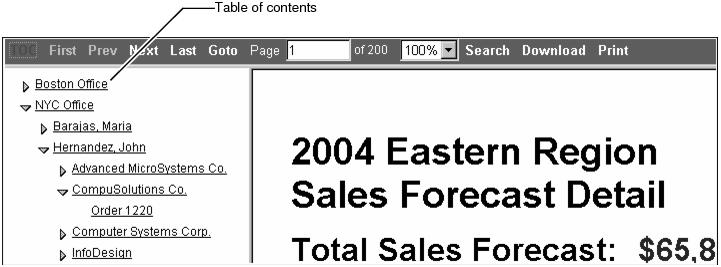

The content of the table of contents depends on the report document. The table of contents looks like Figure 5-21.

Figure 5-21  Table of Contents

XMLDisplay is the only supported format for the table of contents.

Name

<context root>\iportal\activePortal\viewer\viewtoc.jsp

Parameters

Table 5-43 lists and describes the parameters for the view TOC page. The view TOC page also uses the common URI parameters.

Table 5-43  TOC URI parameters

URI parameter	Description
componentID	The identifier of the report document component from which to retrieve Reportlet data. Specify either componentID, or componentName and componentValue.
connectionHandle	An identifier for temporary report documents only.
depth	The depth of the table of contents.
ID	The ID of the report document for which to create a table of contents.
name	The name of the report document for which to create a table of contents. This parameter is ignored if objectID is also specified.

Used by

viewer\searchreport.jsp

viewer\viewframeset.jsp
