How to set parameters on a data object

This example requires a data object that contains parameters.

1	From the dashboard menu, choose Manage Data, as shown in Figure 4-6. Select Data appears.

Figure 4-6  Selecting Manage Data

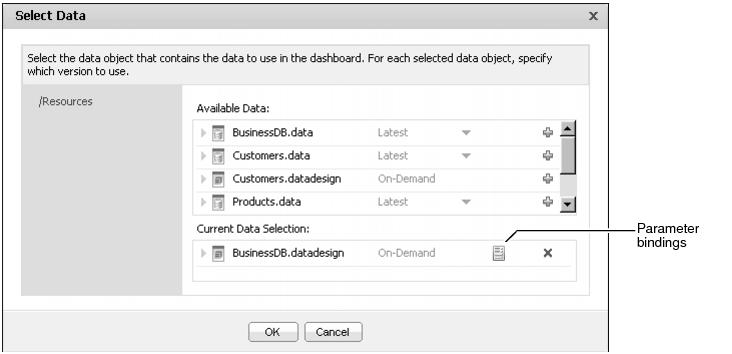

2	In Select Data, choose Parameter Bindings in Current Data Selection, as shown in Figure 4-7.

Figure 4-7  Selecting Parameter bindings

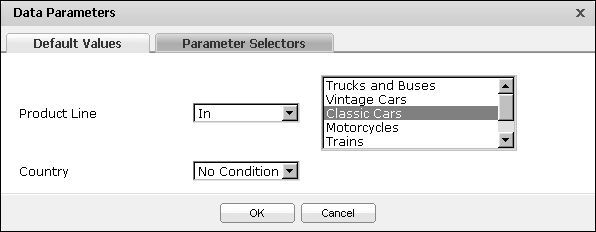

3	Set default values, this example uses dynamic parameters, as shown in Figure 4-8.

Figure 4-8  Selecting default parameter values for Product Line

4	Choose OK. Select Data appears.

5	In Select Data, choose OK again to return to the dashboard.
