Editing a data selection gadget

Each data selection gadget has the following configuration options that are available by choosing Edit in the gadget menu:

n	Data options for assigning data to display in the gadget

n	Filter options to limit the displayed data in the gadget

n	Format options for each type of gadget

n	General options to set how the gadget appears on the dashboard

n	Type option to change the type of an existing gadget

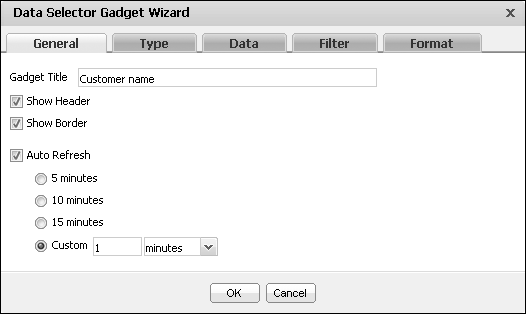

Figure 4-82 shows Data Selector Gadget Wizard—General.

Figure 4-82  Choosing general options for a data selection gadget

Showing the header or border makes those parts of the gadget visible. Auto refresh sets a gadget to refresh at a set frequency.

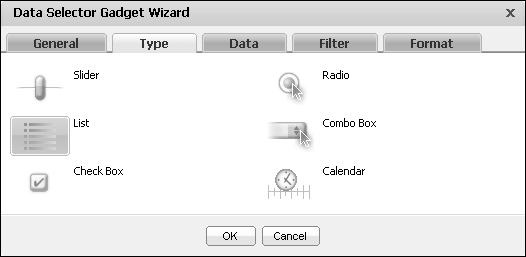

When adding or editing a data selection gadget, you can change the selection type displayed in the gadget in Data Selector Gadget Wizard—Type, as shown in Figure 4-83.

Figure 4-83  Choosing a data selection gadget type
